Types of stainless steel

Austenitic stainless steels cannot harden via heat treatment. Instead, these steels work harden (they attain hardness during their manufacture and formation). Annealing these stainless steels softens them, adds ductility and imparts improved corrosion resistance.

What temperature do you heat treat stainless steel?

Stress Relieving

Austenitic stainless steels are typically heated between 800°F (425°C) and 1700°F (925°C) to achieve an adequate stress relief. One (1) hour at 1600°F (870°C) typically relieves about 85% of the residual stresses.

Why stainless steel is not heat treated?

With sufficient quantities of nickel, stainless steel remains austenite at room temperature, creating the austenitic steels. They are nonmagnetic and cannot be heat treated for through hardening like carbon steels because the phase transformation to martensite does not occur in these alloys.

Can you heat treat 316 stainless steel?

HEAT TREATING

316/316L is not hardenable by heat treatment. Cold working increases tensile strength and hardness. Annealing range is between 1850 and 2050F.

Can 304 stainless steel be heat treated?

304 stainless steel cannot be hardened by heat treatment. Solution treatment or annealing can be done by rapid cooling after heating to 1010- 1120°C.

Stainless Steel Heat Treatment: Oil vs. Plate Quench

Can you flame harden 304 stainless steel?

304 is an austenitic stainless steel. You can't through-harden it.

How do you harden 316 stainless steel?

Austenitic stainless steel cannot be hardened by heat treatment, but can be hardened significantly by cold-working or work hardening. Cold working of materials meant, either by cold rolling or drawing through a die. Low temperature carburizing can be a alternative solution to hardened 316L.

What happens to stainless steel when heated?

Temperature Tolerances for Grade 304 Stainless Steel

One of the key properties of any stainless steel alloy is its resistance to oxidation. High temperatures can compromise the the oxidation resistance of steel alloys, leading them to become rusted and weakening their structural integrity.

Which type of steel Cannot be heat treated?

Austenitics Refuse Heat Treatment

Tough and malleable, there's just one problem that prevents the alloy from being an all-around winner: austenitic stainless steels cannot experience conventional heat treatment procedures.

Can you oil quench stainless steel?

Cooling and Quenching

Martensitic stainless steels have high alloy content and, hence, high hardenability. Full hardness can be achieved through air-cooling at the austenitising temperature, but hardening larger sections may sometimes require oil quenching.

What kind of stainless steel can be hardened?

Martensitic stainless steels can be hardened via heat treatment; how hard they can get depends on their carbon content. The more carbon these steels contain, the more hardenable they are. For example, hose clamp screws are typically made of 410 stainless steel.

What stainless steel is easiest to heat treat?

12c27 is possibly one of the easiest stainless steels to heat treat at home.
...
After heat treatment, the composition of carbon and chromium gives a unique combination of properties including:

• Very high hardness.
• Good corrosion resistance.
• Very high wear resistance.

Can you make a knife out of 304 stainless steel?

Low carbon versions of austenitic stainless steel, such as 304L, should be avoided when making knives unless corrosion resistance is the main concern and blade life is secondary. There are also precipitation-hardening stainless steels that have excellent corrosion resistance and hardenability properties.

Can stainless steel be surface hardened?

Surface hardening of stainless steel can be achieved via specialized high- and low-temperature gaseous thermochemical processes that transform the surface into N/C-expanded austenite.

Can 316L stainless steel be hardened?

316L stainless steel does not harden in response to heat treatments. It can be hardened by cold working, which can also result in increased strength.

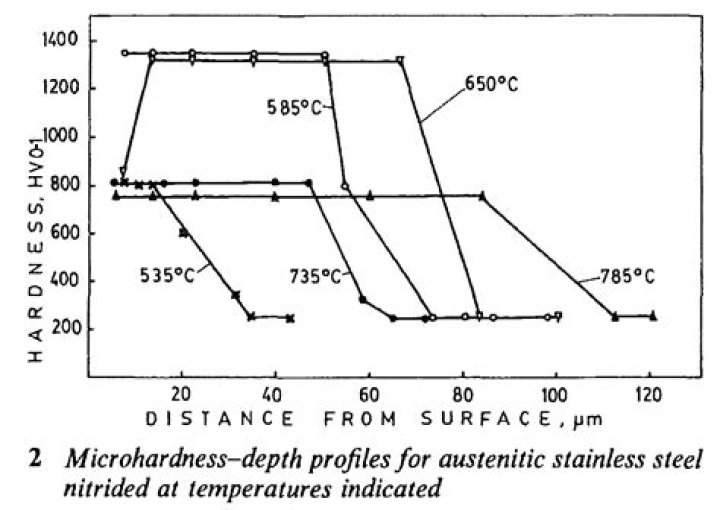

Can you case harden stainless?

Using nitrogen in the formation of the hard case overcomes the problems associated with case carburizing including depletion of matrix chromium and carbon with accompanying lower hardness and corrosion resistance.

How do you harden a 400 series stainless steel?

The 400 series is susceptible to rust and corrosion under some conditions. Heat-treating will harden the 400 series.

How do you heat treat 17 4 stainless steel?

Age hardening of 17–4 PH usually consists of two steps: solution treatment followed by quenching and subsequent aging for precipitation hardening. For 17–4 PH, the solution treatment is done at 1050 °C for 30 min while the aging temperatures range from 480 °C to 760 °C with a duration of two to four hours.

Will heating stainless steel make it rust?

Rusting can also occur when stainless steel is exposed to extremely high temperatures, such as in the 750-1,550 degrees Fahrenheit range. Typically, this degradation occurs due to the heating and cooling of the stainless when it is being welded.

Which is better SS 304 or 316?

For instance, 316 stainless steel is more resistant than 304 to salt and other corrosives. So, if you are manufacturing a product that will often face exposure to chemicals or a marine environment, 316 is the better choice.

What is the difference between 304 and 316 stainless steel?

The simple answer is 304 contains 18% chromium and 8% nickel while 316 contains 16% chromium, 10% nickel and 2% molybdenum. The molybdenum is added to help resist corrosion to chlorides (like sea water and de-icing salts).

How can you tell the difference between 304 and 316 stainless steel?

Aesthetically, there is no difference between the two; in fact, the only way to differentiate between them is to test them chemically. The main difference between 304 and 316 stainless steel is 316 SS has the addition of molybdenum.
