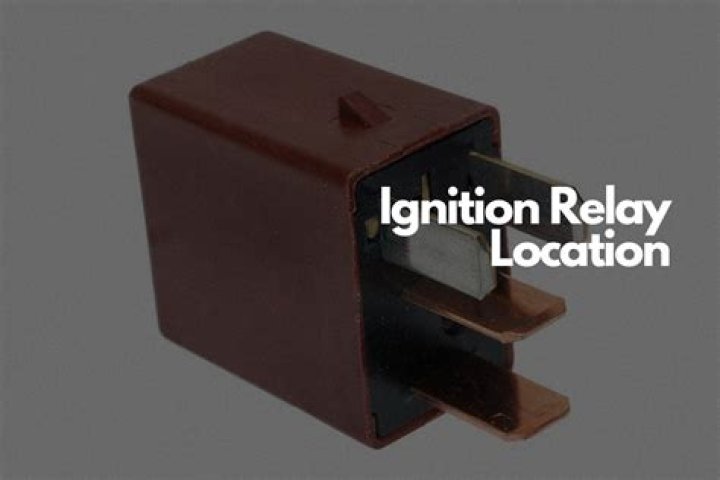

The ignition relay is usually found in the fuse box situated underneath the hood or somewhere under the car's dashboard. It transfers electricity from the battery to the ignition components, which allows you to start the car in the blink of an eye.

How do I know if my ignition relay is bad?

Usually a bad or failing ignition relay will produce a few symptoms that can notify the driver of a potential issue.

1. Car suddenly stalls while operating. One of the most common symptoms of a failed ignition relay is a car that suddenly stalls while operating. ...
2. Car not starting. ...
3. Dead battery. ...
4. Burned relay.

Where is the ignition relay?

The ignition relay is one of the most important electronic relays found on modern vehicles. It is usually located in the fuse and relay panel beneath the bonnet, and is responsible for providing power to the vehicle's ignition system, and some of the fuel system's components.

Is a starter relay and ignition relay the same thing?

In the case of a starter, the ignition switch signals the relay/solenoid (possibly by way of a computer) and the relay/solenoid switches on the starter circuit to engage the starter. Now the terms relay and solenoid are often used interchangeably and there is a lot of confusion about which is which.

What happens when your ignition relay goes out?

If your starter relay has gone bad, the electrical signal will never make it from the battery to the starter motor. As a result, your engine won't turn over - no matter how many times you turn the key. A faulty relay often produces an audible clicking sound when you turn your car.

How To Test and Replace An Igntion Coil Relay

Is there a fuse for ignition switch?

An ignition relay normally sits with a few other relays and fuses in the fuse box found in the engine bay. The area under the hood is open to contaminants and pollutants like dirt and debris – the common reason behind ignition relay failure.

How can you tell if a relay fuse is blown?

Using a multimeter to test a relay fuse is pretty simple. Set the multimeter to Ohms and touch the leads on the electromagnet coil pins to measure resistance. It should be between 50 to 120. If it's out of that range or says it's open, you have a bad electromagnet coil.

How much is an ignition relay?

The average starter relay replacement cost is between $50 and $75, depending on the car model and labor costs. The starter relay parts should cost you around $20, with the labor price at $30 to $55. Replacing a starter relay is a simple job that doesn't require any specialized tools.

Why won't my car start but battery is good?

Broken or Damaged Ignition

If your headlights can turn on, but your car won't crank, that means that your battery is charged, but either the starter or ignition is the problem. If the starter or ignition is the problem, a starter engine can be jumped by using a charged battery.

Can a blown fuse cause car not to start?

Faulty Fuse

And if that's faulty or the fusible links are damaged, your car wont start. A damaged or blown fuse can prevent power from reaching the starter relay, which is needed to provide the spark, the ignition, and the power to move your vehicle.

Why won't my car start but I have power?

The battery is mostly the culprit for a new engine that fails to start. But if the vehicle still has power, a dead battery is mostly out of the question, so is a dead alternator. Some batteries may come with lower charge retention capacity from the factory.

Can you jump start a car with a bad starter relay?

Answer provided by. While you can jump start a car with a bad starter, doing so will not fix the underlying issue. A jump start is to boost your car's battery, not the starter itself.

Can you jump start a car with a bad ignition switch?

It's pretty easy to jumpstart your vehicle. All you have to do is connect to identify the ignition coil and the battery. Connect the positive terminal of the battery to the positive side of the ignition coil. Also, identify the starter solenoid and connect it to the positive terminal of the battery.

What causes a relay to fail?

The two most common failure mechanisms of relays are contamination and mechanical wear of the internal switching elements discussed as follows: a. Contamination is a major cause of early life failures.

Is a fuse and relay the same?

A fuse is a one time protection device that can interrupt a circuit. A relay is a device that is used to connect or interrupt the circuit.

How can I start my car without the ignition switch?

Key is an important element to start your car. In order to start it without a key, one needs to bypass the ignition lock which should only be done when you lost your key. It can only be done by connecting ignition cord to the battery cord followed by touching the starter cord to the connection.

What is the ignition bypass wire?

The Ignition Bypass function allows for support of older GM ignition systems which used this function. This type of ignition system has the trigger signal being sent directly to the ignitor module which then fires the coil.

What sends power to the starter relay?

A starter relay sends small electric power to the starter solenoid when you turn on the ignition key, while the solenoid draws a large current directly from the car batteries. This causes the solenoid to transfer power to the starter motor, which in turn spins the flywheel. All modern starters follow this process.

Why won't my car start but the radio and lights work?

If the lights and/or the radio come on but the car does not start, you may also have dirty or corroded battery terminals. The terminals are what connect the electrical system to the battery. If these are dirty or corroded, the connection could be negatively impacted.
