FRD stands for fast recovery diodes. They offer high-speed support and generally have a trr of approximately 50 to 100 ns.

Which diode has fast reverse recovery feature?

Schottky Diodes. Schottky diode is a diode constructed by the junction of semiconductors with metal (such as gold, tungsten, platinum, molybdenum, chromium). It is also designed for fast switching applications as it has a characteristic of fast recovery time.

Is Schottky diode fast recovery?

Schottky barrier diodes have a fast reverse recovery time and can handle high-speed switching. Furthermore, since the forward voltage is low and the loss during rectification is small, switching power supply circuits that are compact, high efficiency, and generate low heat can be configured.

What is Fast Recovery rectifier?

Definition: Fast Recovery Diode is a semiconductor device which possesses short reverse recovery time for rectification purpose at high frequency. A quick recovery time is crucial for rectification of high-frequency AC signal. Diodes are mostly used in rectifiers because they possess ultra-high switching speed.

What is reverse recovery of diode?

Reverse recovery is a process during which the application of a reverse bias (i.e., a positive. potential to the drain electrode) causes a body diode in the forward-conducting state to switch to the. reverse-blocking state (sweeping-out of the injected carriers), causing a reverse recovery current to. flow.

Diode Reverse Recovery

For which type of diode is the reverse recovery time minimum?

To overcome this problem the “fast recovery” diode was developed, which by suitable processing reduces the reverse recovery time to a minimum, though not to zero. Typical recovery times are 150–200 ns and fast recovery diodes are used extensively in high-voltage, high-speed switching.

Which of the following diode has the least reverse recovery time?

Schottky diode is also called Hot-Carrier diode or Schottky Barrier diode. It has no depletion layer and lowest reverse recovery time. All the MCQs on Schottky Diode Questions and Answers are published according to the new study syllabus for the academic year 2021-22.

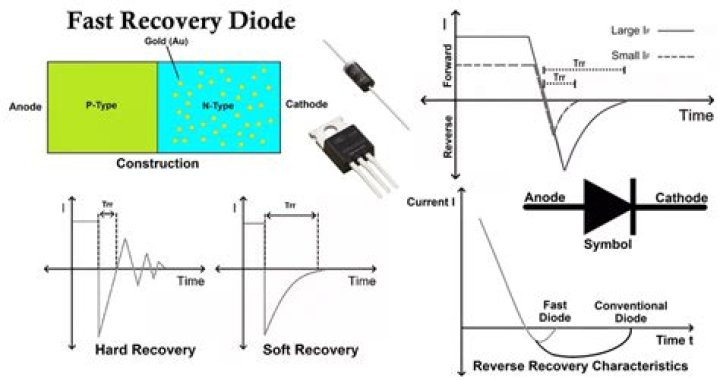

What are fast recovery diodes?

FRD stands for fast recovery diodes. They offer high-speed support and generally have a trr of approximately 50 to 100 ns. With a V_F of approximately 1.5 V, it is rather large when compared to general rectifying diodes. Another generic term for the FRD type would be a “High-speed diode.”

What is ultra fast recovery diode?

A “fast” rectifier typically recovers ten times faster than a standard rectifier, and an “ultrafast” designation is usually applied to rectifiers designed to beat the standard rectifier recovery by being more than fifty times faster.

What is a fast switching diode?

The switching diode has the characteristics of fast switching speed, small size, long life, and high reliability. It is widely used in switching circuits, detection circuits, high-frequency and pulse rectification circuits, and automatic control circuits of electronic equipment.

What is Schottky diode?

The schottky diode is a type of metal – semiconductor junction diode, which is also known as hot-carrier diode, low voltage diode or schottky barrier diode. The schottky diode is formed by the junction of a semiconductor with a metal. Schottky diode offers fast switching action and has a low forward voltage drop.

What is the difference between a Schottky diode and a zener diode?

Schottky diodes and Zener diodes are two different types of diodes. The main difference between Schottky and Zener diode is that a Schottky diode is made of a metal-semiconductor junction whereas a Zener diode is made of a p-n junction of two highly-doped semiconductors.

What is the difference between DIAC and Triac?

DIAC is an acronym for “Diode for Alternating Current”. TRIAC is an acronym for “Triode for alternating current”. It is a diode for AC that allows current in both directions when the applied voltage increase above break overvoltage.

Which is the fastest diode?

In a new paper published in Nature Communications, a team of researchers led by Professor Aimin Song at the University of Manchester in the UK with collaborators at Shandong University in China have developed a flexible Schottky diode that achieves a speed of 6.3 GHz, which to the best of their knowledge makes the ...

Where is Schottky diode used?

Schottky diodes are used as switches in fast-clamp diode applications. In this application, the base junction is forward biased. With Schottky diodes, the turn-off time is significantly reduced and the speed of the circuit is increased.

Which of the following diodes provides fast switching and low reverse recovery time?

The Schottky diode is a semiconductor formed by the junction of a semiconductor with metal. It has a low forward voltage drop and near-zero reverse recovery time hence used in very fast switching circuits.

What is reverse recovery characteristics of power diode?

Reverse Recovery Characteristics of Power Diodes

This time is defined as reverse recovery time and is defined as the time between the instant forward current reaches zero and the instant the reverse current decays to 25% of I_RR. After this time the diode is said to attain its reverse blocking capability.

Do Schottky diodes have reverse recovery?

Schottky diodes do not have reverse recovery time. Recovery from what? In a normal p-n junction diode, there is a charge carrier depletion region, and so the correct polarity electric field applied (the voltage drop) is actually switching it from non-conducting to conducting.

What is maximum reverse recovery time of diode?

[Solved] The reverse recovery time of a diode is trr = 3 μs a.

Which of the following diode provides high reverse breakdown voltage?

Zener diode works under the breakdown region of the p-n junction. It operates in the breakdown region of a p-n diode when a high reverse voltage is applied across the diode and reverse voltage exceeding the breakdown voltage.

What is reverse recovery time of pn junction diode?

Reverse recovery time is the amount of time current flows in the reverse direction when the forward current instantaneously switches directions due to residual stored charge.

What is difference between SCR and TRIAC?

The main difference between SCR and TRIAC is that SCR is a unidirectional device, TRIAC is a bidirectional device. A thyristor is more reliable while TRIAC has less reliable. Thyristor needs two heat sink whereas TRIAC needs only one heat sink.

What are thyristors SCR TRIAC and DIAC?

Thyristors, Triacs and Diacs Symbols. SCR stands for silicon controlled rectifier are a 4 layered PNPN semiconductor device. It has three terminals Anode, Cathode & Gate. Just like a diode, It is a unidirectional device but with a gate control input for triggering the SCR.

Why TRIAC is used?

Triacs are electronic components that are widely used in AC power control applications. They are able to switch high voltages and high levels of current, and over both parts of an AC waveform. This makes triac circuits ideal for use in a variety of applications where power switching is needed.

What does a germanium diode do?

The one big advantage of germanium diodes, which could be a real game changer for a circuit, is that they have lower threshold voltages and, in combination, lower voltage drops in a circuit. The threshold voltage is the voltage required for the diode to conduct current across from its anode to its cathode.
