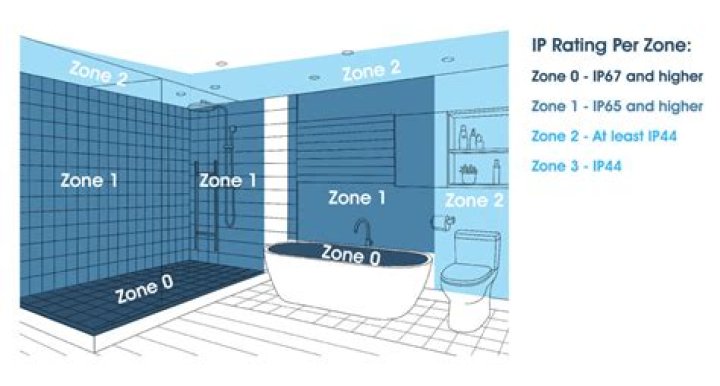

Zone 2 is an area stretching 0.6m outside the perimeter of the bath and to a height of 2.25m from the floor. In these bathroom zones an IP rating of at least IP44 is required. In addition, it is good practice to consider the area around a wash basin, within a 60cm radius of any tap, to be considered as zone 2.

What are Zones 1 and 2 in a bathroom?

The space under the bath tub or shower basin is considered to be zone 1. However, if the space under the bath or shower basin is only accessible with a tool, it is considered to be outside the zones. Zone 2 for a bathroom is the same height as zone 1 (2.25m) extended to 0.6m around the bath.

Where is Zone 2 in bathroom?

Zone 2 – Is the area 600mm above or to the side of the bath and shower and still 2.25m from the floor. Zone 2 is the area least likely to get wet but, still a likeliness of the odd splashes.

What can go in Zone 1 of a bathroom?

Bathroom Zone 1

Zone 1 is the area above the bath or shower tray to a height of 2.25m from the floor. Any fitting used in this zone must have a minimum rating of IPx4* , which means it is protected against water spray from all directions.

What is the height of Zone 1 in a bathroom?

Zone 1 for a bathroom is the same width as zone 0 (the width of the bath) extending to 2.25m above the finished floor level. Zone 1 for a shower room is 2.25m from the finished floor level or the height of the fixed shower head from the finished floor level if more than 2.25m, and the width of the shower basin.

BATHROOMS AND SHOWERS The Zones and Part P

Can a shower pull cord be in zone 2?

Pull cord switches – The cords of cord-operated switches are allowed in Zones 1 and 2; however, the body of the switch must be outside of the zones. In most cases, this is achieved by the switch being ceiling mounted and the ceiling height being above the 2.25m of the zones.

Can an extractor fan go in Zone 2?

Extractor fans installed within zone 2 must be at least IPX4. the SELV transformers and isolators fitted outside of zone 0, 1 & 2. These are classed as anywhere outside Zones 0, 1 and 2 (subject to specific limits) and where no water jet is likely to be used.

What zone is above a shower?

Zone 1 is the area that is directly above a bathtub or inside a shower stall. If your bathroom lacks natural light and the shower enclosure is in dark place, then the light you would install there would need to conform to IPX4 or greater.

Can I put any light in my bathroom?

As long as you follow the correct safety procedures and make sure you install lights outside of the zones requiring IP rated fittings, you can use any lighting to make your bathroom as stylish as you like.

What zone is the ceiling above shower?

Zone 1 is the area above the bath or shower to a height of 2.25m from the floor. In this zone a minimum rating of IP45 is required but it is generally accepted that IP65 is to be used. It's also worth noting that most shower lights are rated at IP65 in any case.

What are Zones 2 and 3 in a bathroom?

In addition, it is good practice to consider the area around a wash basin, within a 60cm radius of any tap, to be considered as zone 2. Zone 3 is anywhere outside zones 0, 1, and 2 (subject to specific limits) and where no water jet is likely to be used.

What zone is a shower in?

Zone 0 is quite basically, anywhere inside a bath, basin or shower itself. It's defined as 'any area within a bathroom that can hold water'. Any fitting or appliance used within zone 0 must be a maximum of 12 volts (SELV) and fully protected against both partial and total immersion in water (minimum rating of IPX7).

Do bathroom lights need to be damp rated?

Bathroom lights do not need to be damp rated in dry spots. It's recommended that lights directly exposed to any moisture should be damp-rated. It's essential to check the damp rating of the lights, especially if you're purchasing them for your bathroom or outdoor patio.

Can extractor fans go in Zone 1?

Bathroom Zone 1 - IPX4

In this zone a minimum rating requirement is IPX4. Recommended extractor fans which are rated to a minimum of IPX4 include: Silent 100.

What zone is a wet room?

What zone applies to wet rooms? Wet rooms must apply to Zone 0.

Can I put a light switch in a bathroom?

For light switches, plate switches can be used on the inside of the bathroom, but these must be suitable for use in the bathroom, given the high levels of humidity and condensation. And they also must be at least 0.6m away from the bath or shower. A pull cord can be used instead, in any location in the bathroom.

Is warm white or cool white better for bathrooms?

Daylight or Warm White or Cool White for Bathroom

We recommend using warm white lighting when applying makeup for a night out to the movies, or a candle-lit dinner.

What type of light is best for bathroom?

As a rough guideline, bulbs labeled “daylight,” which generally have a color temperature of 5000K to 6500K, or bulbs labeled “cool white” or “bright white,” with a color temperature of 3500K to 4100K are best for the bathroom.

Can you put LED lights above shower?

Tip. A ceiling light above showers is acceptable, as long as the light is rated for moist/damp locations and the bottom of the light fixture is at least 8 feet from the top of the shower stall.

How close can a light switch be to a shower?

Unless installed as part of a listed tub or shower assembly, switches will not be installed in wet locations. The NEC states that a damp/wet location is within 36 inches of either the edge of a tub sink or basin or an area that is subject to spray.

Can you put a downlight above a shower?

With IP65 downlights, your total light protection can be installed over your shower or bath without the danger of any possible safety issues (such as electrocution), something that can not be guaranteed with IP64 or less downlights.

Can you install a fan above a shower?

You can place the fan directly over the bathtub or shower base, but it's sufficient to position it anywhere near the bathing area. If the bathroom has both a tub and shower, or a shower and a whirlpool tub, the fan should go somewhere between the two fixtures.

What zone can an extractor fan go in a bathroom?

All bathroom extractor fans must meet a minimum IP rating of IPx4 if installed within zones 1 and 2 of a bathroom. A SELV (safety extra-low voltage) is the best option for installing within a bathroom and especially wet rooms, as they give you the greatest level of protection against electrical shock.

Is it law to have an extractor fan in the bathroom?

While the law doesn't state you must install an extractor fan in your bathroom, it is illegal not to have a source of ventilation inside. This will depend on the structural make-up of your home, but if there is no openable window in place, then an extractor fan must be installed.

Can you use a 240v extractor fan in a bathroom?

It should be IPX4, or IPX5 if it is likely to be subject to direct water jets. Does not have to be low voltage. In short, most fans sold as suitable for use in bathrooms will be suitably rated for your application. So unless your fan is meant to be used in a kitchen?, you should be fine.
