For example, the number 70 in a E7018 electrode indicates that the electrode will produce a weld bead with a minimum tensile strength of 70,000 psi.

What does the 8 stand for in 7018 welding rod?

8 – the '8' indicates that the rod has low hydrogen potassium with iron powder coating and that it can be used with all polarities (DC+, DC-, or AC). The final number, '8' in the case of our E7018 rod, requires more explanation.

What does the 1 in E7018 1 mean?

E7018) E – Stands for electrode. XX – First two digits designates the minimum tensile strength in Ksi (XX * 1000 Psi) X – Second last digit designates position for which the electrode can be used. 1 – Flat, Vertical, Overhead and horizontal (All Position)

What do the numbers on an electrode mean?

The first two digits of a 4-digit number and the first three digits of a 5-digit number stand for tensile strength. For example, E6010 means 60,000 pounds per square inch (PSI) tensile strength and E10018 means 100,000 psi tensile strength. The next to last digit indicates position.

What does the 60 stand for in E6010?

E6010 electrode Specification & classification

E means SMAW or stick welding electrode. The next two digits (6 & 0) 60 state the tensile strength of weld metal, as 60 KSI or 60000 psi.

What does H4R mean on welding rod?

DuraMax E7018 H4R is a moisture resistant, hydrogen controlled, vacuum packed, basic coated electrode which is welder friendly and is recommended for welding of mild and medium carbon steel, high strength steel, cast steel and problematic steels.

What is the difference between E6010 and E6011?

In E6010, the arc stabilizer is sodium, and in E6011 it is potassium (both in the first column, check them out!). That's pretty much the biggest difference in the formulation between these electrodes, but the consequences are huge.

How is the electrode size identified?

The electrode size refers to the diameter of its core wire and each electrode has a certain current range. The welding current increases with the electrode size (diameter). The length of electrodes may depend on diameter of the core wire ranging from 250 to 450 mm i.e. larger the core diameter larger the length.

How do I choose a stick electrode?

Factors for Selecting the Right Stick Electrode

1. Base metal properties.
2. Tensile strength.
3. Welding current.
4. Base metal thickness, shape and joint fit-up.
5. Welding position.
6. Specification and service conditions.
7. Environmental job conditions.

What is the strongest welding rod?

TIG – Gas Tungsten Arc Welding (GTAW)

TIG welding produces the strongest type of weld.

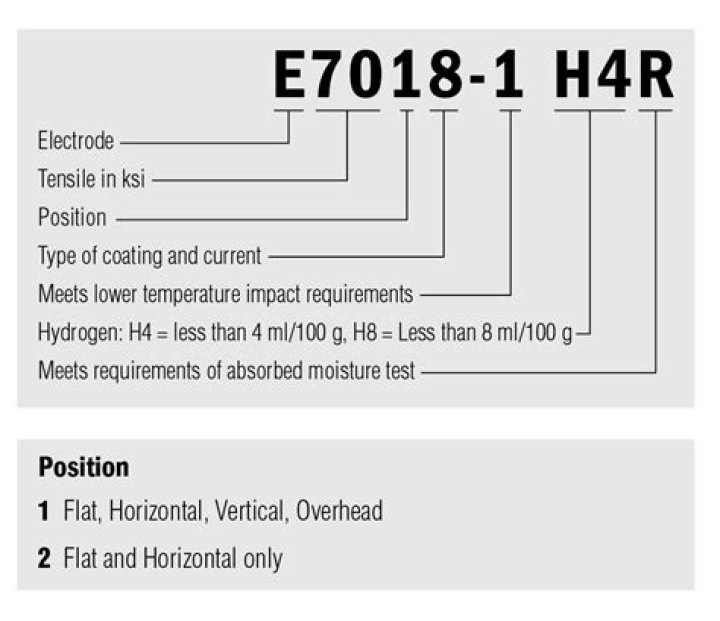

What does the h4 mean in E7018-1 H4R?

E7018-1(E4918-1) Electrode specification

The EN/ISO equivalent of E7018 (E4918-1) is E42 5 B 4 2 H5 (as per EN ISO 2560-A). H4R in E7018-1 means the level of hydrogen present in the deposit weld metal using this electrode.

What does the 1 and 8 represent for the electrode E7018?

The "E" in E7018 electrode indicates a tool used for an arc-welding process. The 70 means it makes welds that are very strong (70,000 psi). The 18 means two things: The "1" means the electrode can be used in any position, and the "18" means low hydrogen and usually DC current.

What amp do I need to weld with a 7018 Rod?

Amperage Rule

In general, the 7018 rod is used with currents up to 225 amps. A rule of thumb is to use 30 amps of current per 1/32 inch of rod diameter. That would mean using 90 amps of current on a rod that is 3/32-inch in diameter.

What is 7010 welding rod used for?

Applications: E7010-A1 is most commonly used for welding carbon-moly piping used in high pressure, high temperature steam service and structural shapes, plates and castings, which have a 1/2% Mo content.

What does E7016 mean?

E7016 :Low hydrogen potassium Electrode ( not BASIC SODIUM LOW HYDROGEN; E7015 is Low hydrogen sodium electrode)

Do you weld 7018 AC or DC?

The 7018 welding rods are used for pipe welding and structural steel welding and repair welding. This low-hydrogen, usually DC, all-position electrode can also be used with AC, which not many welders may know.

Do you touch the metal when stick welding?

You should never touch a welding rod with one hand while touching the metal being welded with your other hand. However, you can touch your electrode on purpose if you want to have easier starts or heat treat material by applying heat through an electrode.

What is the correct arc length?

Length of arc: The correct arc length varies with each electrode and application. As a good starting point, arc length should not exceed the diameter of the metal portion (core) of the electrode. For example, an 1/8-inch 6010 electrode is held about 1/8 inch off the base material.

What do the 4 numbers on a welding rod mean?

For example, 1 means the electrode can be used in all positions and 2 means it can be used on flat and horizontal fillet welds only. The fourth digit represents the coating type and the type of welding current (AC, DC or both) that can be used with the electrode.

Does size of electrode affect current?

Repeated measure analysis of variance and Newman-Keuls post hoc tests revealed that increasing electrode size significantly decreased voltage but increased current and phase charge magnitudes.

Why is electrode size important in welding?

Arc length – If an arc length is too long, the metal melts off the electrode in large globules that shift from side to side, resulting in a wide and irregular weld bead with considerable spatter, and porosity may form and degradation of the mechanical property may occur.

How does electrode size affect voltage?

A larger sized electrode raised the voltage level. of the electrode follows a quadratic function of the side length. Therefore, the effect of the side length on the voltage would continue to be enhanced as the surface area increased more sharply.

What is 7024 rod used for?

Sureweld 7024 is ideal for making high speed horizontal fillet and lap welds on mild and some alloy steels, such as earthmoving and construction equipment, truck bodies, ships, barges and railcars.

Why do you use 6010 for a root pass?

I have found, and think most welders will agree, that 6010 runs more smoothly. The slag chips off better than 6011, and this is one reason it is used more often than 6011 in root passes on pipes. Another advantage of these electrodes is the speed at which they burn.
